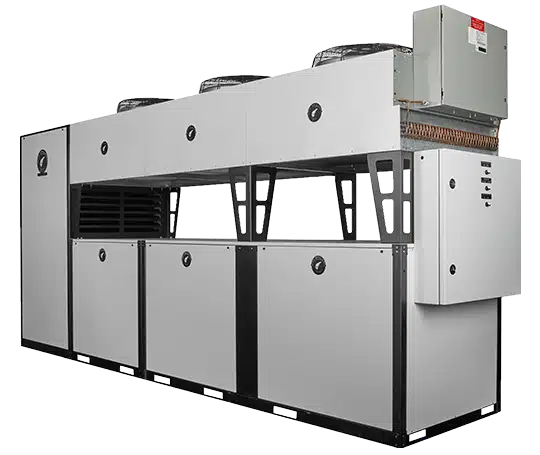

Tandem Scroll Chillers
Tandem Scroll Chillers are built for dependable, energy-efficient performance in medium to high temperature applications. Equipped with high-efficiency scroll compressors, they are well suited for distilleries, solvent recovery, HVAC systems, and a wide range of industrial processes.
- 2 complete refrigeration circuits for redundancy and load control
- Engineered high efficiency heat exchanger for maximum energy savings
- Chiller glycol pump
- Process pump
- Dynamic fluid bypass valve
- ETL 508A listed complete control panel with single point electrical connection, breakers, starters & safety switches
- All insulated copper piping
- Insulated crosslinked polyethylene glycol reservoir
- Digital phase and voltage monitoring with error log
- High temp alarm
- Low ambient control
- High and low pressure controls
- Freeze stat safety switch
- Anti cycle timer to prevent short cycling of compressor
- On/pump down/off switch
- Fully powder coated steel frame
- Powder coated aluminum housing
- Louvered access panels for easy service and maintenance
- Factory run tested and fully charged with refrigerant
- Two year parts and one year labor warranty
- CTS flange glycol supply and return connections
- Microprocessor controller with communication capabilities
- One year free remote monitoring subscription
Tandem Scroll Chillers Available

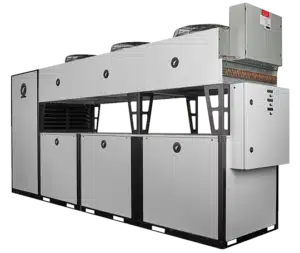

GD – 20T-2
Key Specifications
- GPM @ 25 PSI: 65 GPM
- Connection Size: 2″
- Dimensions: 45″ x 113″ x 108″
- Tank Volume: 190 Gallons
- Horsepower: 2 HP (Process Pump)
- Operating Weight: 4,690 lbs
GD – 30T-2
Key Specifications
- Dimensions (WxLxH): 45″ x 140″ x 108″
- Tank Volume: 190 Gallons
- Process Pump: 5 HP
- GPM @ 25 PSI: 120 GPM
- Operating Weight: 5,400 lbs
- Connection Size: 2″
