- Complete refrigeration circuit
- Engineered a high-efficiency heat exchanger for maximum energy efficiency
- Glycol pump
- Dynamic fluid bypass valve
- Insulated stainless steel glycol reservoir with level indicator
- All insulated copper piping
- ETL 508A listed complete control panel with single point electrical connection, breakers, starters & safety switches
- High and low pressure controls
- Freeze stat safety switch
- High temp alarm
- Low ambient control
- Anti-cycle timer to prevent short cycling of the compressor
- On/pump down/off switch
- Compact microprocessor controller with communication capabilities
- Supply and return ball valves
- Fully powder-coated steel frame
- Powder-coated aluminum housing
- Louvered access panels for easy service and maintenance
- Factory-run tested and fully charged with refrigerant
- Two-year parts and one-year labor warranty
- One-year free remote monitoring subscription
Single Stage Chillers Available
GD – 1.5H Nano Chill
Key Specifications
- Dimensions (WxLxH): 34″ x 61″ x 50″
- Tank Volume: 60 Gallons
- Process Pump: 1.5 HP
- GPM @ 25 PSI: 40 GPM
- Operating Weight: 1,400 lbs
- Connection Size: 1″
GD – 10H Micro Chill
Key Specifications
- Dimensions (WxLxH): 48″ x 73″ x 61″
- Tank Volume: 110 Gallons
- Process Pump: 2 HP
- GPM @ 25 PSI: 65 GPM
- Operating Weight: 2,200 lbs
- Connection Size: 1.5″

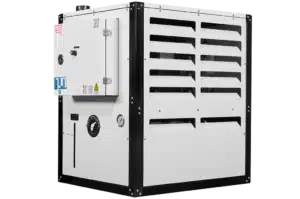

GD – 2H Nano Chill
Key Specifications
- Dimensions (WxLxH): 34″ x 61″ x 50″
- Tank Volume: 60 Gallons
- Process Pump: 1.5 HP
- GPM @ 25 PSI: 40 GPM
- Operating Weight: 1,450 lbs
- Connection Size: 1″
GD – 3H Micro Chill
Key Specifications
- Dimensions (WxLxH): 34″ x 61″ x 50″
- Tank Volume: 60 Gallons
- Process Pump: 1.5 HP
- GPM @ 25 PSI: 40 GPM
- Operating Weight: 1,500 lbs
- Connection Size: 1″
GD – 5H Micro Chill
Key Specifications
- Dimensions (WxLxH): 48″ x 73″ x 61″
- Tank Volume: 110 Gallons
- Process Pump: 2 HP
- GPM @ 25 PSI: 65 GPM
- Operating Weight: 2,100 lbs
- Connection Size: 1.5″
Reach out to get started today!
Talk with one of our specialists to help you size and select the proper equipment.
