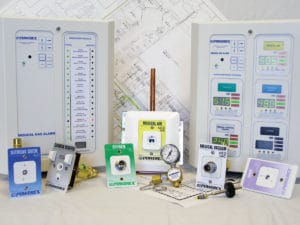

Medical Gas Pipeline

• Double O-ring seal design.
• O-rings made of robust Viton® material – lasts 4 times longer than competitive barrel grommets.
• Close tolerance fit with metal to metal contact – will support up to 10 lbs. at 2” without leaks.
• DISS removable front assembly; easily maintain/replace outlets without shutting down the gas service.
• 360° swivel inlet tube.
• Durable, protective, vinyl gas identification label.
• All DISS outlets are ETL listed to UL 1331 and SCAZ9170-1 and conform to NFPA 99 and CGA standards. All outlets are 100-p

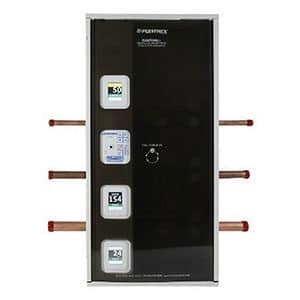

• Powerex now offers the most comprehensive LCD touch screen alarm panels on the market with our new Med Touch Series alarms.
• Up to 128 signal points in a single panel
• Bright, easy to read LCD displays
• Text/e-mail notification of alarm events
• Enter text instructions for staff under an alarm condition

Powerex Genesys® fully-automatic manifold systems incorporate innovative features that improve safety, reduce manifold system costs, enhance serviceability, and provide industry-leading reliability.

PX-CCU, PX-NPCU, PX-LLU, and PX-PLU models are OSHPD Seismic Certified, OSP-0380-10.

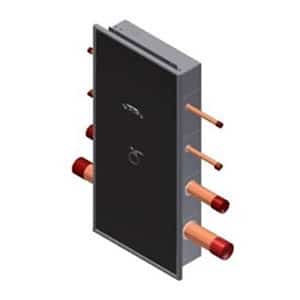

• Forged brass (not cast), full port ball valves.
• Ability to plumb left to right or right to left – dual gauge ports.
• Type K copper extensions and locking handles.
• Working pressure rating of 600 psi WOG (29in/Hg vacuum).
• Plastic insulators to prevent galvanic corrosion.
• Three-piece in-line repairable valves.

• Bright, easy to read LCD displays
• Text/e-mail notification of alarm events
• Enter text instructions for staff under an alarm condition
• It does not require re-calibration.
• User-programmable high/low set points.
• Adjustable packing with blow-out proof stem design.
• Available with optional EZ Backfeed™.

Powerex pressure switches are UL and CSA listed, feature a removable copper diaphragm capsule, a snap-action switch, and normally open or normally closed contacts.

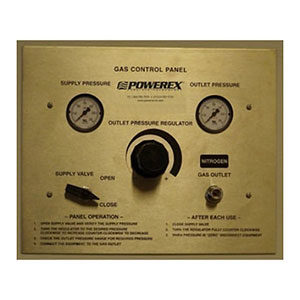

Powerex gas control panels feature a self-relieving 0-250 psi pressure regulator, easy to read 2” 0-300 psi gauges, a DISS outlet, and high-quality ball valves. NFPA 99 compliant

Powerex sleep lab control panels allow for the adjustment of oxygen to a patient entering the room. They feature click style flowmeters, 0-15lpm flow, inlet, and outlet supply tubes with demand checks and DISS fitting, and can be plumbed left to right or right to left.

All panels are NFPA 99 and CGA compliant.

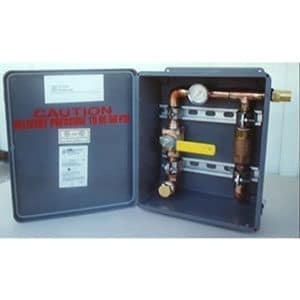

Powerex Emergency Oxygen Inlets are housed in a rugged, fiberglass NEMA 4 weather-tight enclosure with a padlock to prevent tampering or unauthorized access. The NPTF oxygen inlet supports high flow requirements, and it includes a ¾” 75 PSIG safety relief valve. NFPA 99 compliant.

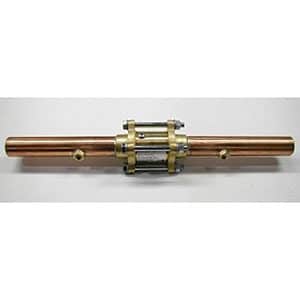

Powerex check valves are available in sizes ¾” to 4” with a maximum of 300 PSIG. They feature a hinged double disk check valve, dual 1/8 NPT purge ports, spring assisted closures, and factory brazed extensions. The three-piece design allows for easy field replacement. NFPA 99 compliant and cleaned per CGA G-4.1.

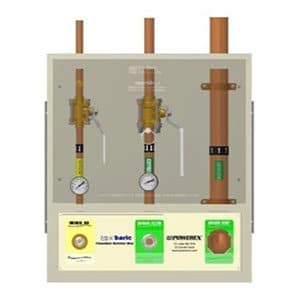

Powerex has designed the perfect solution for connecting medical gas and vent lines to hyperbaric chamber installations – the Hyperbaric Valve/Outlets/Vent Box. Designed with single point plumbing connections for fast easy installation and with a professional cosmetic look to make your Hyperbaric installation state of the art – the HCB incorporates Medical Air and Oxygen valves with gauges and DISS or an optional high flow (over 2,900 scfh) Oxygen outlet, along with a 1 ½” vent line. All outlets incorporate our unique Frontall™ front-loaded cartridge design for easy and fast maintenance – without removing the front of the outlet. The window is “smoked” translucent removable plastic, providing access to the valves. All gas piping components are designed per NFPA 99 guidelines and cleaned per CGA G-4.1.
